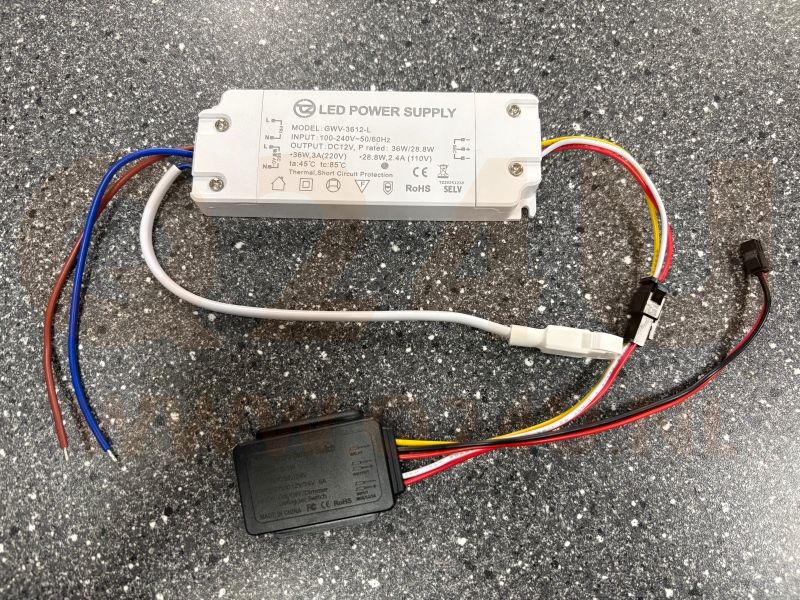

Q24U 12V 3A 36W LED Driver with Touch Switch and 230V Output for Mirror Heating – Model GWV-3612-L

The Q24U GWV-3612-L LED Driver is a complete solution for powering and controlling 12V LED mirror lighting and 230V mirror heaters. The integrated touch switch allows you to switch the LED lighting on and off with a simple touch on the mirror.

This version also features a 230V output for mirror heating, with the mirror heater switching on simultaneously with the LED lighting. Both functions can therefore be controlled conveniently with a single touch.

Its compact design makes the LED driver easy to install behind mirrors or mirror cabinets, making it an ideal solution for bathrooms, hotels, wellness areas and other installations where LED mirror lighting and mirror heating are combined.

Features

• Complete LED driver with integrated touch switch
• Suitable for 12V LED mirror lighting
• 230V output for mirror heating
• Mirror heater switches on together with the LED lighting
• Simple touch on/off operation
• Compact design for concealed installation
• Touch switch GTS-1W

Specifications

• Model: GWV-3612-L
• Input voltage: 100–240V AC
• LED lighting output: 12V DC – 3A – 36W
• Mirror heater output: 100–240V AC
• Touch switch: GTS-1W

Dimensions

LED Driver

• Height: 15 mm
• Width: 44 mm
• Length: 123 mm

Touch Switch

• Height: 12 mm
• Width: 63 mm
• Length: 65 mm

Package Contents

• 1 × Q24U GWV-3612-L LED Driver (12V / 3A / 36W)
• 1 × Touch Switch

Important

If your mirror does not have an on/off symbol at the desired touch switch position, this symbol must be engraved into the mirror after installation.
