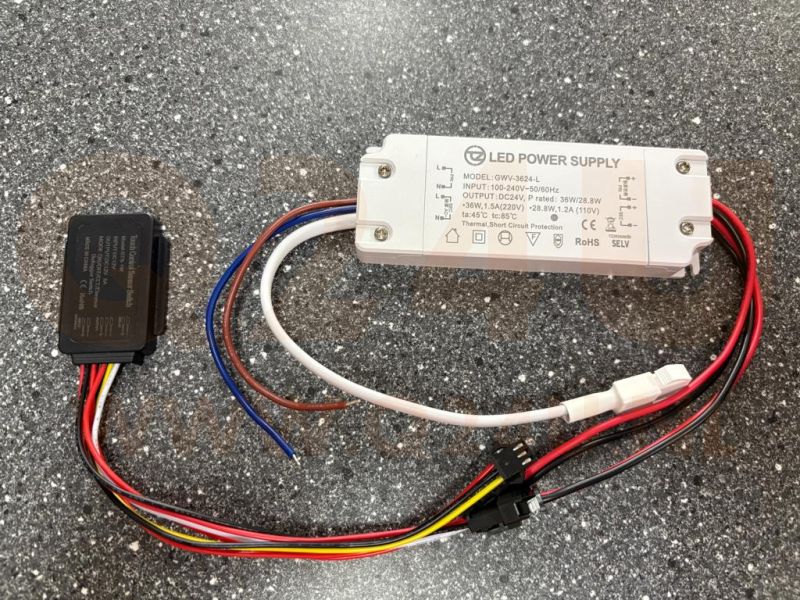

24V 3A 36W LED Driver with Touch Switch and 230V Output for Mirror Heaters – Model GWV-3624-L

The GWV-3624-L LED Driver is a complete solution for powering and controlling 24V LED mirror lighting and 230V mirror heaters. The integrated touch switch allows you to switch the LED lighting on and off or adjust the brightness with a simple touch on the mirror.

This version also features a 230V output for mirror heaters, with the mirror heater switching on simultaneously with the LED lighting. This allows both functions to be controlled conveniently with a single touch.

Its compact design makes the LED driver easy to install behind mirrors or mirror cabinets, making it an ideal solution for bathrooms, hotels, wellness areas and other installations where LED mirror lighting and mirror heating are combined.

Features

• Complete LED driver with integrated touch switch
• Suitable for 24V LED mirror lighting
• 230V output for mirror heaters
• Mirror heater switches on together with the LED lighting
• Smooth dimming for LED lighting
• Compact design for concealed installation
• Touch switch with LED status indicator
  • White = Off
  • Blue = On

Specifications

• Model: GWV-3624-L
• Input voltage: 100–240V AC
• LED lighting output: 24V DC – 3A – 36W
• Mirror heater output: 100–240V AC
• Touch switch: GTS-1W1204

Dimensions

LED Driver

• Height: 15 mm
• Width: 43 mm
• Length: 125 mm

Touch Switch

• Height: 12 mm
• Width: 55 mm
• Length: 117 mm

Package Contents

• 1 × GWV-3624-L LED Driver (24V / 3A / 36W)
• 1 × Touch Switch

Important

If your mirror does not have an on/off symbol at the desired touch switch position, this symbol must be engraved into the mirror after installation.
