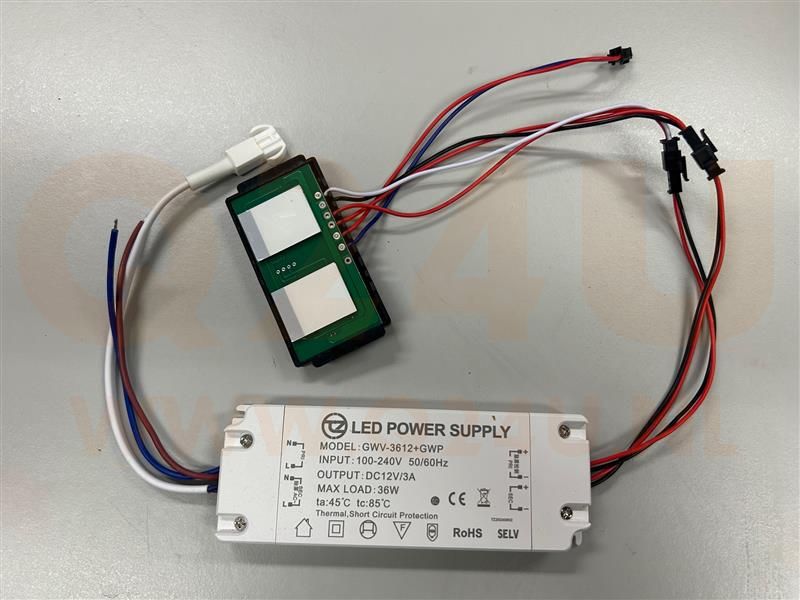

12V 3A 36W LED Driver with Dual Touch Switch and 230V Output for Mirror Heating – Model GWV-3612+GWP

The GWV-3612+GWP LED Driver with Dual Touch Switch is a complete solution for independently controlling 12V LED mirror lighting and 230V mirror heating. The dual touch switch features two separate touch zones, allowing the lighting and mirror heater to be operated independently.

The first touch zone switches the LED lighting on and off and provides smooth dimming control. The second touch zone switches the mirror heater on or off independently. This gives you full control over both functions and allows them to be used only when required.

Its compact design makes the LED driver easy to install behind a mirror or mirror cabinet. This combination is ideal for bathrooms, hotels, wellness areas and other installations where LED mirror lighting and mirror heating are integrated into one system.

Features

• LED driver with dual touch switch
• Two separate touch control zones
• Suitable for 12V LED mirror lighting
• Separate 100–240V AC output for mirror heating
• LED lighting can be switched independently
• Smooth dimming for LED lighting
• Mirror heater can be switched independently
• Touch switch with colour indicator:
  • White = Off
  • Blue = On
• Compact design for concealed installation behind the mirror

Specifications

• LED driver model: GWV-3612+GWP
• Input voltage: 100–240V AC
• LED lighting output: 12V DC – 3A – 36W
• Mirror heater output: 100–240V AC
• Dual touch switch: KS-P2(1202)

Dimensions

LED Driver

• Height: 17 mm
• Width: 52 mm
• Length: 145 mm

Dual Touch Switch

• Height: 12 mm
• Width: 55 mm
• Length: 117 mm

Package Contents

• 1 × GWV-3612+GWP LED Driver (12V / 3A / 36W)
• 1 × KS-P2(1202) Dual Touch Switch

Important

If you require on/off symbols at the touch switch positions and your mirror does not already have them, these symbols must be engraved into the mirror glass afterwards.
