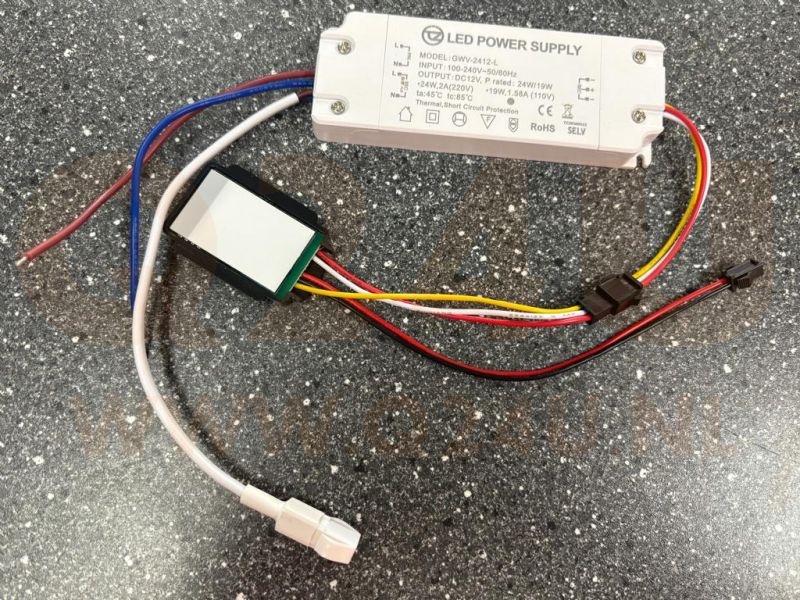

12V 2A 24W LED Driver with Touch Dimmer and 230V Output for Mirror Heating – Model GWV-2412-L

The GWV-2412-L LED Driver is a complete solution for powering and controlling 12V LED mirror lighting and 230V mirror heating. The integrated touch dimmer allows you to switch the LED lighting on and off or smoothly adjust the brightness with a simple touch on the mirror.

This version also features a 230V output for mirror heating, with the mirror heater being controlled independently from the LED lighting. This allows both functions to be operated separately for maximum flexibility.

Its compact design makes the LED driver easy to install behind mirrors or mirror cabinets, making it an ideal solution for bathrooms, hotels, wellness areas and other installations where LED mirror lighting and mirror heating are combined.

Features

• Complete LED driver with integrated touch dimmer
• Suitable for 12V LED mirror lighting
• 230V output for mirror heating
• Mirror heater can be switched independently
• Smooth dimming for LED lighting
• Compact design for concealed installation
• Touch switch FD-M7001-3

Specifications

• Model: GWV-2412-L
• Input voltage: 100–240V AC
• LED lighting output: 12V DC – 2A – 24W
• Mirror heater output: 100–240V AC
• Touch switch: FD-M7001-3

Dimensions

LED Driver

• Height: 15 mm
• Width: 43 mm
• Length: 125 mm

Touch Switch

• Height: 12 mm
• Width: 63 mm
• Length: 65 mm

Package Contents

• 1 × GWV-2412-L LED Driver (12V / 2A / 24W)
• 1 × Touch Switch

Important

If your mirror does not yet have an on/off symbol at the touch switch position, this must be engraved into the mirror after installation.
